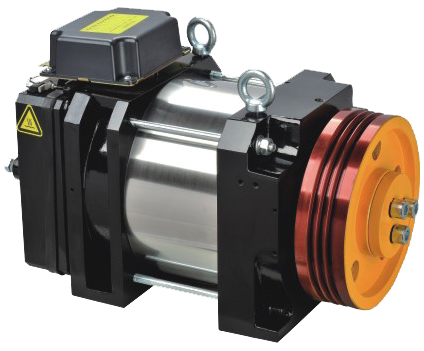

Permanent Magnets Synchronous (PMS) Gearless Traction Machine

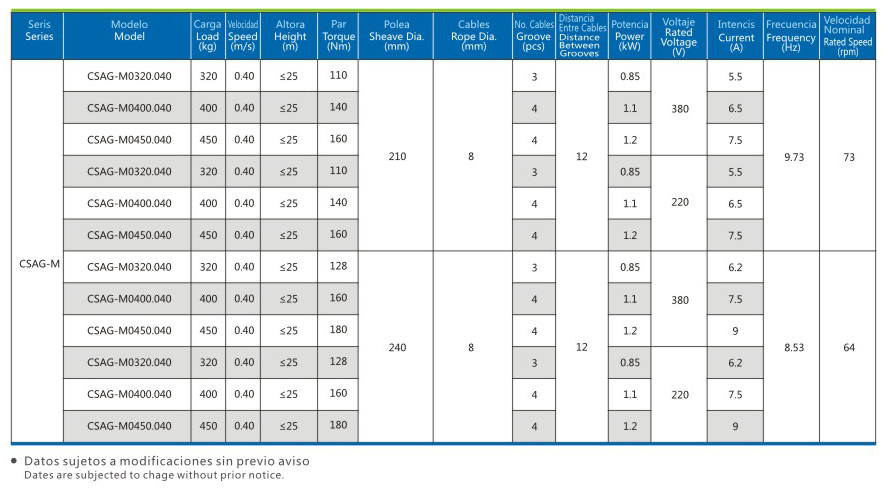

Characteristics
Load:
320kg~450kg
Speed:
0.4m/s
Suspension :
2 : 1
Max. Static Load :
2000kg
Rope Dia.:
8mm
Sheave Dia.:
210mm o 240mm
Number of Grooves :
3~4
Shape of Groove :
U Shape
γ:
35º
β:
96º
Pole pairs:
8
Insulation Standard :
F
IP Code:
IP41
Rating :
S5-40%
Braking:
Shaft Braking
Voltage of Brake :
DC110V
Current of Brake :
1.0A*2
Encoder:
Heidenhain 1387-2048
For moderate use elevators
