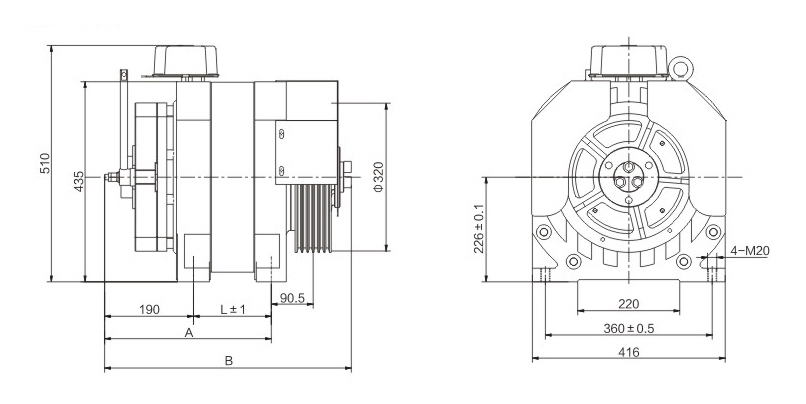

Permanent Magnets Synchronous (PMS) Gearless Traction Machine
Characteristics
Load:
450kg~1050kg
Speed:
0.5m/s~2.5m/s
Suspension :
2 : 1
Max. Static Load :
3000kg
Rope Dia.:
8mm
Sheave Dia.:
320mm
Number of Grooves :
4~8
Shape of Groove :
U Shape
γ:
35º
β:
96º
Pole pairs:
12
Insulation Standard :
F
IP Code:
IP41
Rating :
S5-40%
Braking:
Shaft Braking
Voltage of Brake :
DC110V
Current of Brake :
1.1A*2
Encoder:
Heidenhain 1387-2048
For roomless Operation
