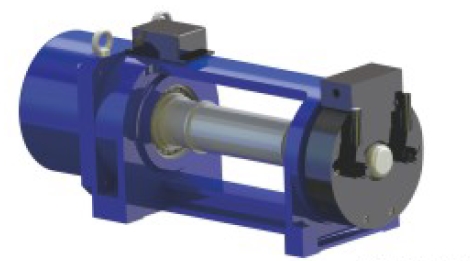

Permanent Magnets Synchronous (PMS) Gearless Traction Machine
Characteristics
Load:
320 kg – 450 kg
Speed:
0,15 m/s – 1,0 m/s
Suspension :
2 : 1
Max. Static Load :
1500 kg
Numbers of Belts :
2
Sheave Dia.:
80 mm
Pole pairs:
5
Insulation Standard :
F
IP Code:
IP 41
Rating :
S5-25%
Braking:
Shaft Braking
Voltage of Brake :
DC110V / DC 190V / DC 207
Current of Brake :
0,6Ax2 / 0,4Ax2 / 0,4Ax2
Encoder:
Heidenhain 1387-2048
For home use elevators
